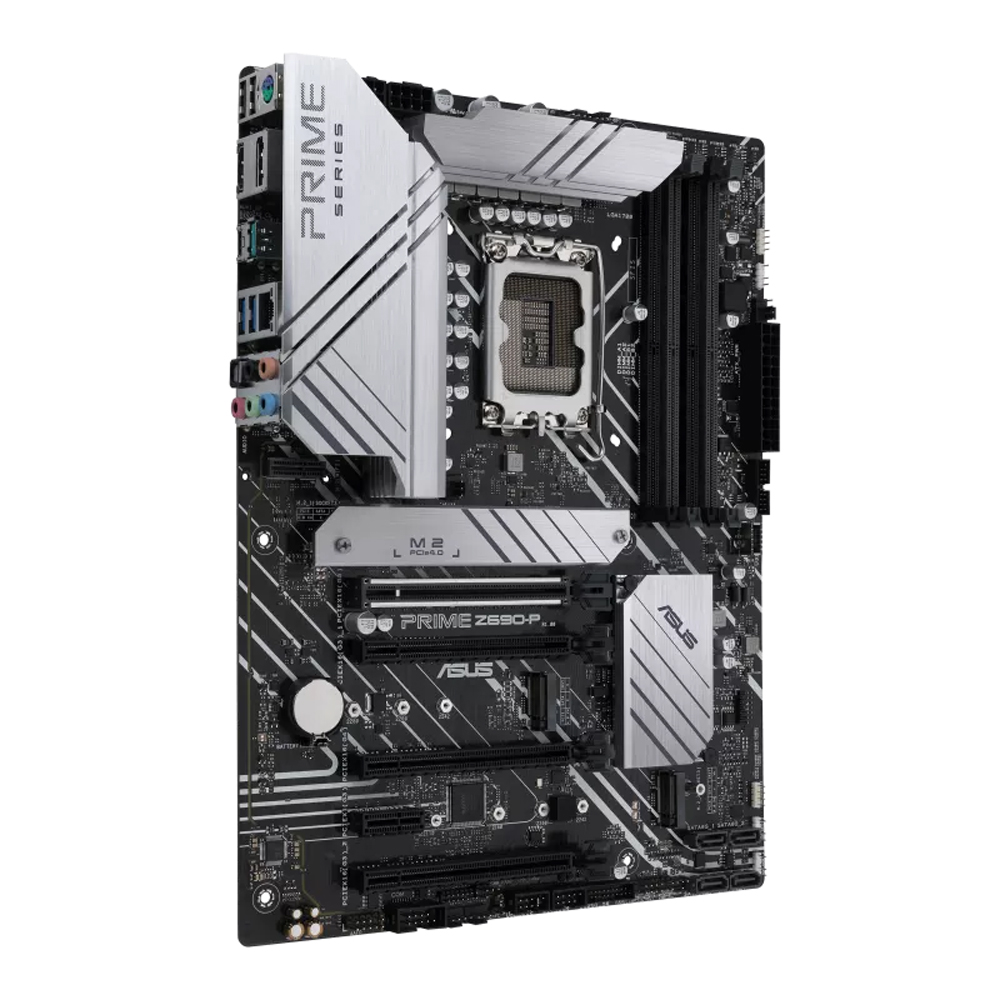

Mainboard Asus Prime Z690-P-CSM So sánh

Liên hệ
396
(0)

Chọn sản phẩm:

Chipset: Intel Z690 Socket: LGA 1700 Số khe RAM: 4 (DDR5) Kích thước: ATX
Mã SP: ASU-MAI-690PP
Bảo hành: 36 Tháng
Giá bán: 6.790.000 đ
Giá khuyến mại: 5.360.000 đ (Tiết kiệm: 21%)

Gọi đặt mua 1900 9074 (9:00 - 19:30)

Sản phẩm có hỗ trợ mua Trả góp lãi suất 0% bấm vào nút MUA TRẢ GÓP để được hưởng ưu đãi ngay
* Lưu ý: Chương trình áp dụng cho khách hàng đang sử dụng thẻ tín dụng!
Yên Tâm Mua Sắm Tại NPCshop.vn
1
Thanh toán thuận tiện (Xem chi tiết)
2
Giao hàng miễn phí Nội thành (Xem chi tiết)
3
Sản phẩm cao cấp chính hãng 100%
4
Bảo hành 1 đổi 1 theo tiêu chuẩn (Xem chi tiết)
5
Giá cạnh tranh nhất thị trường
6
Đội ngũ kỹ thuật có kinh nghiệm

ƯU ĐÃI

Đánh giá Mainboard Asus Prime Z690-P-CSM

0
rate
0 Đánh giá
  • 5
    0 Đánh giá
  • 4
    0 Đánh giá
  • 3
    0 Đánh giá
  • 2
    0 Đánh giá
  • 1
    0 Đánh giá
Chọn đánh giá của bạn
Quá tuyệt vời
Thông số kỹ thuật Mainboard Asus Prime Z690-P-CSM
Socket Intel® Socket LGA1700
Chipset Intel® Z690
CPU (hỗ trợ tối đa) 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
OS hỗ trợ Windows® 11 64-bit, Windows® 10 64-bit
Bộ nhớ RAM tối đa 128 GB
Số khe cắm 4
Kênh bộ nhớ Dual
RAM 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Kích thước nguồn hỗ trợ ATX
30.5cm x 23.4cm
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
LAN 1 x Realtek 2.5Gb Ethernet
LANGuard
Kết nối Wireless V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Các cổng khác 1 x V-M.2 slot (Key E)
PS/2 keyboard/ mouse combo port 1 x PS/2 Keyboard/Mouse combo port
RJ45 1 x Realtek 2.5Gb Ethernet port
USB 2.0 2 x USB 2.0 ports
USB 3.2 1 x USB 3.2 Gen 2 port
2 x USB 3.2 Gen 1 ports
USB-C 1 x USB 3.2 Gen 2x2 port
CỔNG AUDIO 5 x Audio jacks
1 x Optical S/PDIF out port
HDMI 1 x HDMI® 2.1
Display Port 1 x DisplayPort 1.4
SATA III 6Gb/s 4
M.2 SLOT Intel® 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
PCI-EX1 1 x PCIe 3.0 x1 slot
PCI-EX4 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
PCI-EX16 1 x PCIe 5.0/4.0/3.0 x16 slot
Tính năng đặc biệt khác ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
RAID
Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
