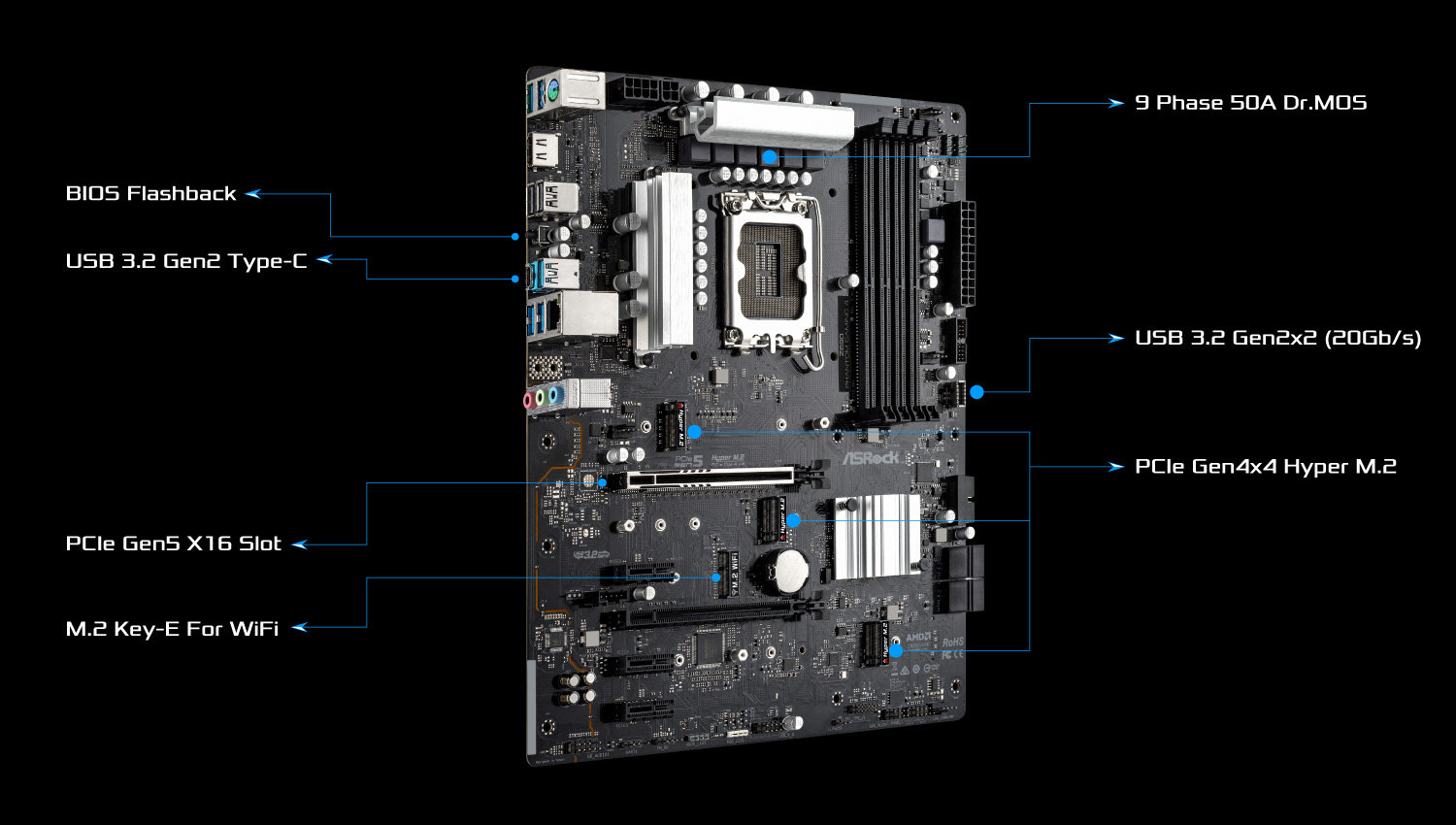

Mainboard Asrock Z690 Phantom Gaming 4 - Intel Z690 | Socket 1700 ATX | 4 khe Ram DDR4 So sánh

${$product_info.productName}$

Liên hệ

213

(0)

Hỗ trợ Bộ xử lý Intel® Core ™ thế hệ thứ 12 (LGA1700) 9 Phase Dr.MOS Power Design Hỗ trợ DDR4 5000MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio Intel® Gigabit LAN

Mã SP: ASR-Main-Z6900009

Bảo hành: 36 Tháng

Giá khuyến mại: Liên hệ

ĐẶT MUA NGAY Giao hàng tận nơi nhanh chóng THÊM VÀO GIỎ HÀNG Thêm vào giỏ hàng để chọn tiếp

Gọi đặt mua 0909226607 (9:00 - 19:30)

Yên Tâm Mua Sắm Tại NPCshop.vn

Thanh toán thuận tiện (Xem chi tiết)

Giao hàng miễn phí Nội thành (Xem chi tiết)

Sản phẩm cao cấp chính hãng 100%

Bảo hành 1 đổi 1 theo tiêu chuẩn (Xem chi tiết)

Giá cạnh tranh nhất thị trường

Đội ngũ kỹ thuật có kinh nghiệm

ƯU ĐÃI

Build PC tại NPCshop với CPU i9 14900K mới nhất - Giảm Còn 13.990.000đ!
Build PC với CPU i7 14700K - Giảm Còn giá 10.300.000đ

Hỗ trợ trả góp 0% qua MPOS (Thẻ tín dụng), HDSAISON (Xem chi tiết)
Vệ sinh PC miễn phí năm đầu tại shop

Thông tin Mainboard Asrock Z690 Phantom Gaming 4 - Intel Z690 | Socket 1700 ATX | 4 khe Ram DDR4

Xem thêm

Đánh giá Mainboard Asrock Z690 Phantom Gaming 4 - Intel Z690 | Socket 1700 ATX | 4 khe Ram DDR4

0 Đánh giá

5

0 Đánh giá
4

0 Đánh giá
3

0 Đánh giá
2

0 Đánh giá
1

0 Đánh giá

Gửi đánh giá

Quy định đăng bình luận Gửi bình luận

Thông số kỹ thuật Mainboard Asrock Z690 Phantom Gaming 4 - Intel Z690 | Socket 1700 ATX | 4 khe Ram DDR4

CPU	- Supports 12th Gen Intel® Core™ Processors (LGA1700) - 9 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	- Intel® Z690
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Slots	- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))* - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage	- 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O	- 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design

Xem đầy đủ thông số kỹ thuật

CPU	- Supports 12th Gen Intel® Core™ Processors (LGA1700) - 9 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	- Intel® Z690
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Slots	- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))* - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage	- 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O	- 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design
