Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5 So sánh

${$product_info.productName}$

Liên hệ

1005

(0)

Hỗ trợ Bộ xử lý Intel® Core ™ thế hệ thứ 12 (LGA1700) 11 Phase SPS Dr.MOS Power Design Hỗ trợ DDR5 6400MHz (OC) 1 PCIe 5.0 x16 Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio Killer E3100 2.5G LAN Killer AX1675 802.11ax (WiFi 6E) + Bluetooth

Mã SP: ASR-Main-Z6900010

Bảo hành: 36 Tháng

Giá khuyến mại: Liên hệ

ĐẶT MUA NGAY Giao hàng tận nơi nhanh chóng THÊM VÀO GIỎ HÀNG Thêm vào giỏ hàng để chọn tiếp

Gọi đặt mua 0909226607 (9:00 - 18:30)

Yên Tâm Mua Sắm Tại NPCshop.vn

Thanh toán thuận tiện (Xem chi tiết)

Giao hàng miễn phí Nội thành (Xem chi tiết)

Sản phẩm cao cấp chính hãng 100%

Bảo hành 1 đổi 1 theo tiêu chuẩn (Xem chi tiết)

Giá cạnh tranh nhất thị trường

Đội ngũ kỹ thuật có kinh nghiệm

ƯU ĐÃI

Build PC tại NPCshop với CPU i9 14900K mới nhất - Giảm Còn 13.600.000đ!
Build PC với CPU i7 14700K - Giảm Còn giá 9.990.000đ

Hỗ trợ trả góp 0% qua MPOS (Thẻ tín dụng), HDSAISON (Xem chi tiết)
Vệ sinh PC miễn phí năm đầu tại shop

Thông tin Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5

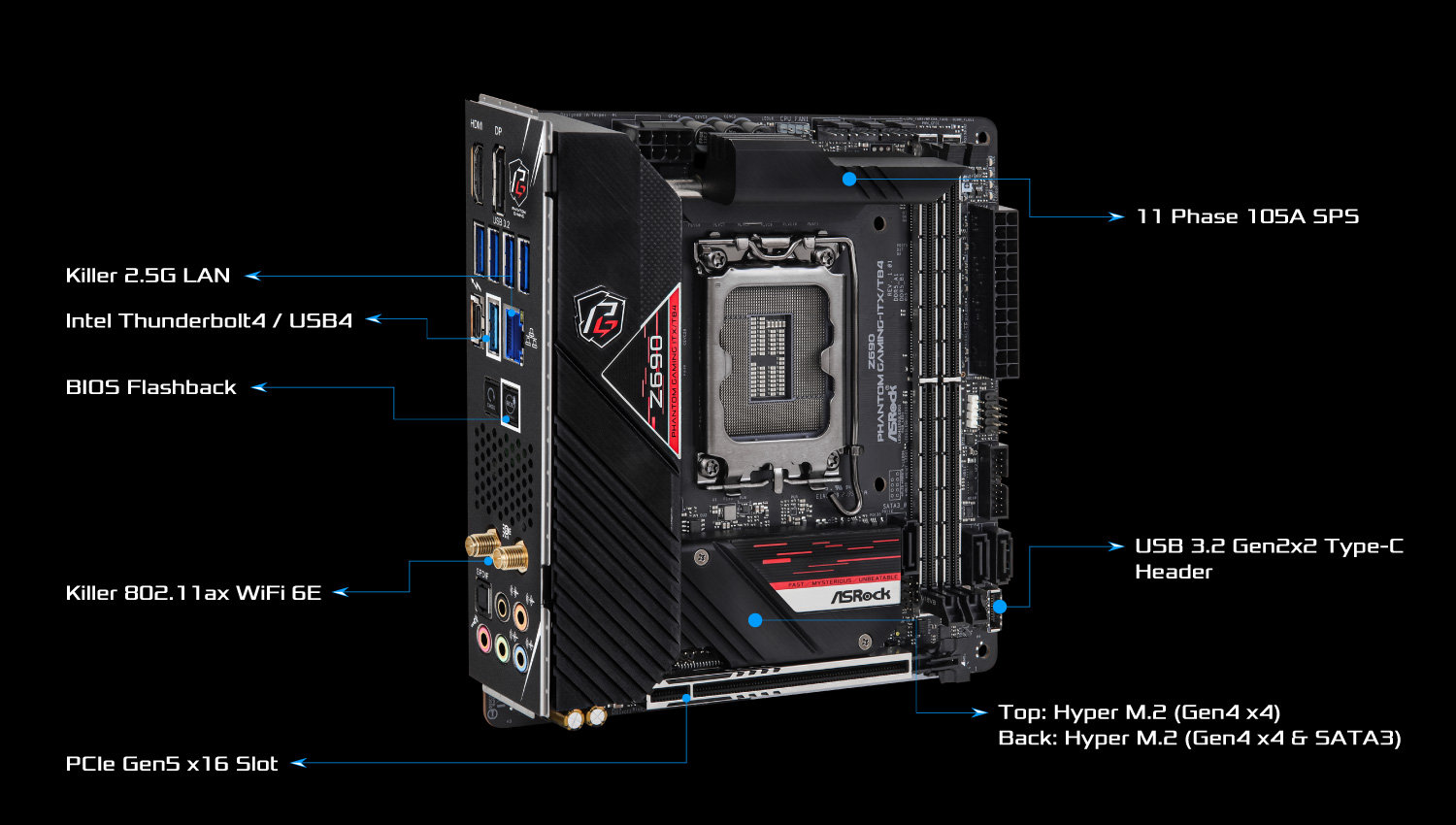

Intel<sup>®</sup> Z690 series concept picture

Đặt mua Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5:

Để sở hữu Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5 (Bảo hành chính hãng: 36 Tháng), quý khách vui lòng liên hệ:

Địa chỉ: 411 Nguyễn Trọng Tuyển, Phường 2, Quận Tân Bình, Hồ Chí Minh, Việt Nam [Xem đường đi]
Hotline: 0909226607
Zalo: https://npcshop.vn/zalo
Facebook: https://npcshop.vn/facebook

Xem thêm

Đánh giá Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5

0 Đánh giá

5

0 Đánh giá
4

0 Đánh giá
3

0 Đánh giá
2

0 Đánh giá
1

0 Đánh giá

Gửi đánh giá

Quy định đăng bình luận Gửi bình luận

Thông số kỹ thuật Mainboard Asrock Z690 Phantom Gaming - ITX/TB4 - Intel Z690 | Socket 1700 | Mini ITX |2 khe Ram DDR5

CPU	- Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 11 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	- Intel® Z690
Memory	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU CORE/Cache, CPU GT, VCCIN_AUX, VDD_CPU, VDD_IMC, +0.82V PCH, +1.05V PCH, +1.8V PROC, +1.05V PROC, VDD, VDDQ, VPP Voltage Multi-adjustment
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: HDMI, DisplayPort 1.4 and Intel® Thunderbolt™ 4 ports - Supports Triple Monitor - Supports Intel® Thunderbolt™ 4 with max. resolution up to 8K (7680x4320) @ 60Hz** - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with DisplayPort 1.4, HDMI 2.1 TMDS Compatible and Intel® Thunderbolt™ 4 Ports
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
Slots	- 1 x PCIe Gen5x16 Slot* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	- 3 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	- 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x Chassis Fan Connector (4-pin)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Port (Supports ESD Protection) - 1 x USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 10 Layer PCB

Xem đầy đủ thông số kỹ thuật

CPU	- Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 11 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	- Intel® Z690
Memory	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU CORE/Cache, CPU GT, VCCIN_AUX, VDD_CPU, VDD_IMC, +0.82V PCH, +1.05V PCH, +1.8V PROC, +1.05V PROC, VDD, VDDQ, VPP Voltage Multi-adjustment
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: HDMI, DisplayPort 1.4 and Intel® Thunderbolt™ 4 ports - Supports Triple Monitor - Supports Intel® Thunderbolt™ 4 with max. resolution up to 8K (7680x4320) @ 60Hz** - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with DisplayPort 1.4, HDMI 2.1 TMDS Compatible and Intel® Thunderbolt™ 4 Ports
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
Slots	- 1 x PCIe Gen5x16 Slot* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	- 3 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	- 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x Chassis Fan Connector (4-pin)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Port (Supports ESD Protection) - 1 x USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 10 Layer PCB
